Supporting next level IXP topologies

Netlab 1.4 sneak preview (unofficial)

Output of ‘fdp’ layout for ‘netlab create -o graph’

Imagine you are an IXP deploying technologies like RFC9161 EVPN with proxy ARP and MPLS over RSVP-TE, and you need to come up with a validated multi-vendor design. How would you go about that?

The Netlab team has got you covered. Check out this example — a sneak preview with upcoming Netlab 1.4 features (work in progress)

  • S1/S2 are data center routers doing EVPN/VXLAN with proxy ARP; iBGP control plane and ISIS IGP. Anycast gateways are available in the ‘red-hot’ vlan
  • C1/C2 are core nodes doing SRv6 over ISIS (one might call this BGP-Free :)
  • PE1/PE2 are MPLS core nodes doing MPLS EVPN over LDP, with OSPF

netlab up

…is all it takes to bring this topology to life!

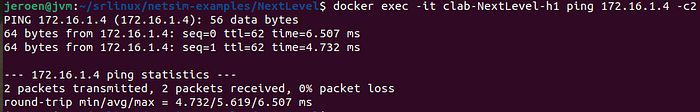

Customer h1 can ping h4 across this ultimate feature fabric

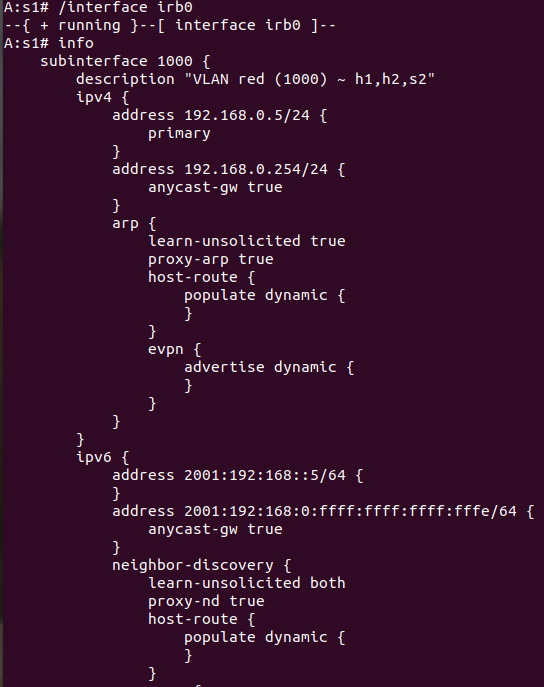

Resulting interface configuration on s1 (SR Linux)

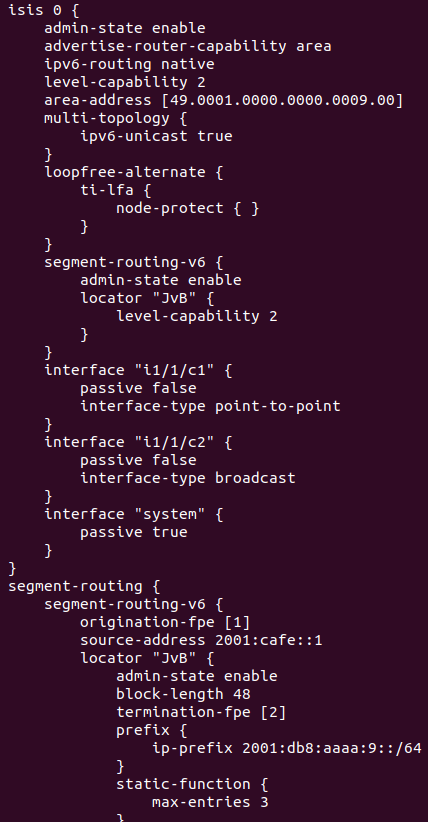

Sample ISIS/SRv6 configuration on c1 (SR OS)

--

--
